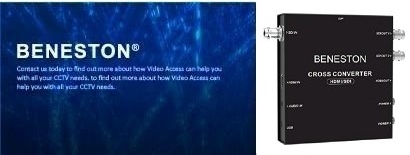

• Input HDMl x 1 or SDl x 1, Analog audio x 1
• Output 3G-SDl x 2, HDMl x 1
• Up / down scaling and frame rate conversion
• Analog audio Embedding
• HDMI / SDI Input automatic detection and configuration
• Control eas,ly via the DIP switches
• USB is used for power supply
• Dual threaded locking power, for redundant power supply
• Detachable bracket design for wall mounting

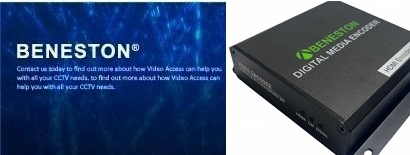

• SoC : Ambarella’s S6LM
• HDMI loop out Support
• Encoding format: H.264 / H.265 / M-JPEG
• Maximum resolution frame rate: 1920x1080p
• Low-latency private : ≤ 200 ms
• Video protocol: HTTP/HTTPs/RTMP/RTSP/HTTP TS/HTTP FLV/HLS/UDP multicast/RTP multicast
• Support Onvif search and browse video docking with NVR
• Audio: HDMI audio input or 3.5mm external audio input, supports stereo
• Configure parameters and upgrade firmware through WEB

• 4K AHD/TVI/CVI/CVGS to 3G/HD-SDI, HDMI, VGA
• Support all type AHD/CVI/TVI/CVBS Video signal input
• SDI output support : 1080p/1080i/720p 60_50Hz
• HDMI/VGA output support : 1080p/720p 60_50Hz
• Easy to configure, and robust for 24/7 operation services
