Model No. |
VIR-IR08MP15KW |
|
Camera |
|
|
Image Sensor |
1/2.8" CMOS Image Sensor |
|
Effective Pixels |
3840(H) × 2160(V), 8-Megapixel |
|
Min. Illumination |
Color: 0.009Lux ; Balck : 0Lux |
|
Electronic Shutter |
1/10 ~ 1/50,000 sec |
|
S/N Ratio |
≥50dB |
|
Day & Night |
IR cut filter |
|
Lens |
|
|
Focal Length |
1.8 mm Fix Lens , (2.8mm, 4mm, 6mm, 8mm Optional) |
|
Noise Reduction |
DNR |
|
Day/Night |
Automatic, Manual, Scheduled |
|
WDR |
Support |
|
Video |
|
|
Video Compression |
H.265/HEVC or H.264/AVC |
|
Encoding Format |
Main Stram: H.265, H.264, M-JPEG
Sub Stream: H.265, H.264, M-JPEG |
|
Main Stream |
3840x2160_30fps, 3072x2048_30fps, 2592x1944_30fps
2560x1440_30fps, 2304x1296_30fps
1920x1080_30fps, 1280x720_30fps |
|
Sub Stream |
640x480, 640x360_30fps |
|
Scalable Video Coding |
H.265, H.264 encoding |
|
Video Bit Rate |
64 ~ 16000kbps |
|
H.264 Type |
Baseline Profile, Main Profile, High Profile |
|
H.265 Type |
Main Profile |
|
Audio |
None |
|
Alarm |
None |
|
Network |
|
|
Protocols |
IPv4/IPv6, HTTP, DNS, RTSP, RTMP, TCP/IP, DHCP |
|
API |
Open Network Video Interface (Profile S) |
|
Max User Access |
6 users |
|
Web Browser |
IE Edge, Chrome, Safari |
|
Image |
|
|
Day/Night Switch |
Day, Night, Auto, Schedule |
|
Image Enhancement |
DNR |
|
Wide Dynamic Range |
Support |
|
Image Settings |
Saturation, brightness, contrast, sharpness adjustable by web browser |
|
Interface |
|
|
Ethernet Interface |
1 RJ45 10M/100M self-adaptive Ethernet port |
|
Event |
|
|
Basic Event |
Motion detection |
|
IR Model |
|
|
Illumintaor Projector |
2 sets of array LED |
|
IR Distance |
Up to 15 meters |
|
General |
|
|
Power Supply |
DC12V 2.0A |
|
Power Consumption |
<8W |
|
Operating Temperature |
-10ºC ~ 50ºC, Humidity 90% or less (non-condensing) |
|
Storage Temperature |
-10ºC ~ 55ºC |
|

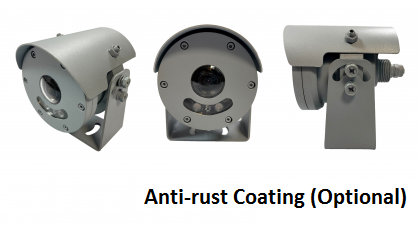

Antirust Coating |
Germany Brantho-Korrux (option) |
|

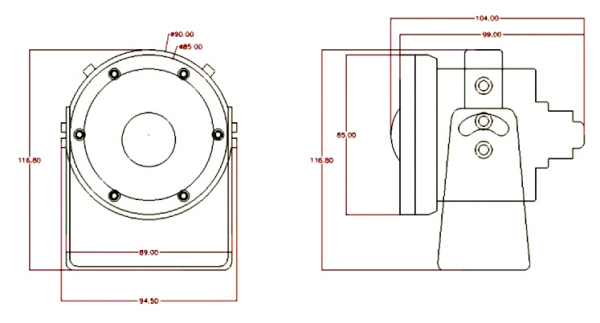

Dimensions |
104mm x 116.8mm x 94.5mm |
|
Weight |
1920g |
Product specifications are subject to change without notice. |
